Flat TV wall mount for TVs from 40 to 100 inches
Want to mount your beautiful flat screen TV on the wall quickly and easily? This QUICK Fixed TV wall mount makes it easy. The TV wall mount is suitable for TVs from 40 to 100 inches and weighing up to 75 kg. The wall mount fixes your TV firmly in place. It has no turn or tilt function. Installation takes 20 minutes at most. The result is a TV mounted quickly, safely and super-tight to the wall. The space between the TV and the wall is only 2.2 cm.

Quick and easy installation
Mounting your TV is too complicated? Not with this QUICK Fixed TV wall mount. Thanks to the unique EasyFIXâ„¢ system, you can mount your TV on the wall in three simple steps. Within 20 minutes, you will be sitting and enjoying your TV.

Mounting materials and instructions included
A drilling template, screws and Fischer® DuoPower plugs are included in the packaging. You can therefore start mounting straight away. How you do that is explained step by step in the enclosed Quick Installation Guide. You can also view the detailed manual or the installation video online. Mark out your first drill hole easily, using the free DrillRight™ AR App.

Guaranteed safe
Choosing a QUICK Fixed TV wall mount is not only choosing ease of installation. You are also choosing safety. Thanks to the unique SoftLockâ„¢ system, your TV is always safely secured. In addition, each QUICK TV wall mount is TÃœV certified and tested at three times its maximum weight capacity. There is a good reason why your QUICK Fixed TV wall mount comes with a 5-year warranty.

SpecificationsFor TVM 1603 Fixed TV Wall Mount

Series

QUICK

Guarantee

5 years

TÃœV certified

Yes

Product size

L

Colour

Black

Min. screen size (inch)

40

Max. screen size (inch)

100

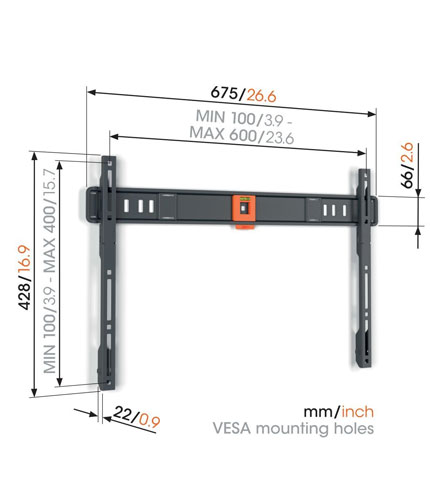

Hole pattern (VESA)

• 100 mm x 100 mm
• 100 mm x 200 mm
• 200 mm x 100 mm
• 200 mm x 200 mm
• 200 mm x 300 mm
• 300 mm x 200 mm
• 300 mm x 300 mm
• 400 mm x 200 mm
• 400 mm x 300 mm
• 400 mm x 400 mm
• 500 mm x 200 mm
• 500 mm x 300 mm
• 500 mm x 400 mm
• 600 mm x 200 mm
• 600 mm x 300 mm
• 600 mm x 400 mm

Min. distance to the wall (mm)

22

Max. weight load (kg)

75

What's in the box

• Wall mount
• Wall mounting kit with fischer® Duo Power plugs
• TV fasteners kit
• Spirit level
• Quick Installation Guide
• DrillRightâ„¢ AR app
• Drilling template
