Tilting TV wall mount for TVs from 32 to 65 inches
Make things easy and comfortable for yourself with this QUICK Tilt TV wall mount. Installation is extremely easy. You can mount your TV on the wall in max. 20 minutes. By tilting the TV wall mount 5°, 10° or 15°, you can set the desired viewing angle, a feature that is especially nice if your TV is mounted a bit higher on the wall. The TV wall mount is suitable for TVs from 32 to 65 inches and weighing up to 25 kg.

Easy to install in three steps
Thanks to the unique EasyFIXâ„¢ system, QUICK Tilt TV wall mounts are quick and easy to install. The entire installation process consists of only three steps. You can mount your TV on the wall in max. 20 minutes.

Get to work straight away
All the mounting materials you need to install your QUICK Tilt TV wall mount are included in the packaging. As well as screws and Fischer® DuoPower plugs, a drilling template is also included. With our free DrillRight™ AR App, you can easily mark out the first drill hole.
The QUICK Tilt TV wall mount itself has a built-in spirit level, so you can be sure that your TV is mounted straight.
You can find step-by-step instructions in the Quick Installation Guide. In addition, you can view a detailed manual and the installation video online.

Safe TV wall mount
This QUICK Tilt TV wall mount excels not only in ease of installation but also in safety. For example, the SoftLockâ„¢ system ensures that your TV is always safely secured. And thanks to the TiltGripâ„¢ system, the mount remains securely fixed in any position. In addition, each QUICK TV wall mount is TÃœV certified and tested at three times its maximum weight capacity. QUICK Tilt TV wall mounts therefore meet the most stringent safety requirements. There's a good reason that you get a 5-year warranty.

SpecificationsFor TVM 1413 Tilting TV Wall Mount

Series

QUICK

Guarantee

5 years

TÃœV certified

Yes

Product size

M

Colour

Black

Min. screen size (inch)

32

Max. screen size (inch)

65

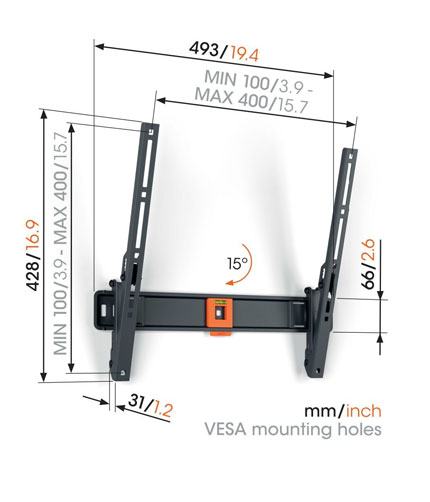

Hole pattern (VESA)

• 100 mm x 100 mm
• 100 mm x 200 mm
• 200 mm x 100 mm
• 200 mm x 200 mm
• 200 mm x 300 mm
• 300 mm x 200 mm
• 300 mm x 300 mm
• 400 mm x 200 mm
• 400 mm x 300 mm
• 400 mm x 400 mm

Min. distance to the wall (mm)

31

Max. weight load (kg)

25

Tilt

Tilt up to 15°

What's in the box

• Wall mount
• Wall mounting kit with fischer® Duo Power plugs
• TV fasteners kit
• Spirit level
• Quick Installation Guide
• DrillRightâ„¢ AR app
• Drilling template
