Tilting TV wall mount for TVs from 19 to 43 inches
With this QUICK Tilt TV wall mount, you are choosing ease of installation and viewing comfort. Installation is extremely simple. Your TV is in place in just 20 minutes. By tilting the TV wall mount 5°, 10° or 15°, you can easily set the ideal viewing angle, which is more comfortable if your TV is mounted a bit higher on the wall. The TV wall mount is suitable for TVs from 19 to 43 inches and weighing up to 15 kg.

Mounting your TV on the wall in three easy steps
QUICK Tilt TV wall mounts are very quick and easy to mount. Thanks to the unique EasyFIXâ„¢ system, you are finished in three steps. Within a maximum of 20 minutes, your TV is mounted on the wall and you can sit back with the remote control.

Vogel's makes it easy
Thanks to the enclosed drilling template, screws and Fischer® DuoPower plugs, you can get to work straight away. There is no need to visit the hardware store first. Also easy: thanks to the built-in spirit level, mounting your TV perfectly straight is a piece of cake.
How to install your QUICK Tilt wall mount is explained step by step in the Quick Installation Guide. If you wish, you can also view the detailed manual and the installation video online. With our free DrillRightâ„¢ AR App, you can easily mark out the first drill hole.

A choice for safety
With this QUICK Tilt TV wall mount, you are not only choosing ease of installation but also safety. The SoftLockâ„¢ system ensures that your TV is safely secured, while the TiltGripâ„¢ system ensures secure mounting in any position. In addition, each QUICK TV wall mount is TÃœV certified and tested at three times its maximum weight capacity. QUICK Tilt TV wall mounts therefore meet the highest safety requirements. You receive a 5-year warranty on your purchase.

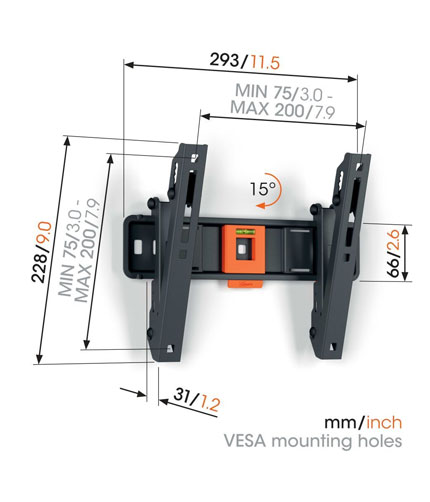

SpecificationsFor TVM 1213 Tilting TV Wall Mount

Series

QUICK

Guarantee

5 years

TÃœV certified

Yes

Product size

S

Colour

Black

Min. screen size (inch)

19

Max. screen size (inch)

43

Hole pattern (VESA)

• 75 mm x 75 mm
• 100 mm x 100 mm
• 100 mm x 200 mm
• 200 mm x 100 mm
• 200 mm x 200 mm

Min. distance to the wall (mm)

31

Max. weight load (kg)

15

Tilt

Tilt up to 15°

What's in the box

• Wall mount
• Wall mounting kit with fischer® Duo Power plugs
• TV fasteners kit
• Spirit level
• Quick Installation Guide
• DrillRightâ„¢ AR app
• Drilling template
