CCGL85220GY10
Retail price
€3.00

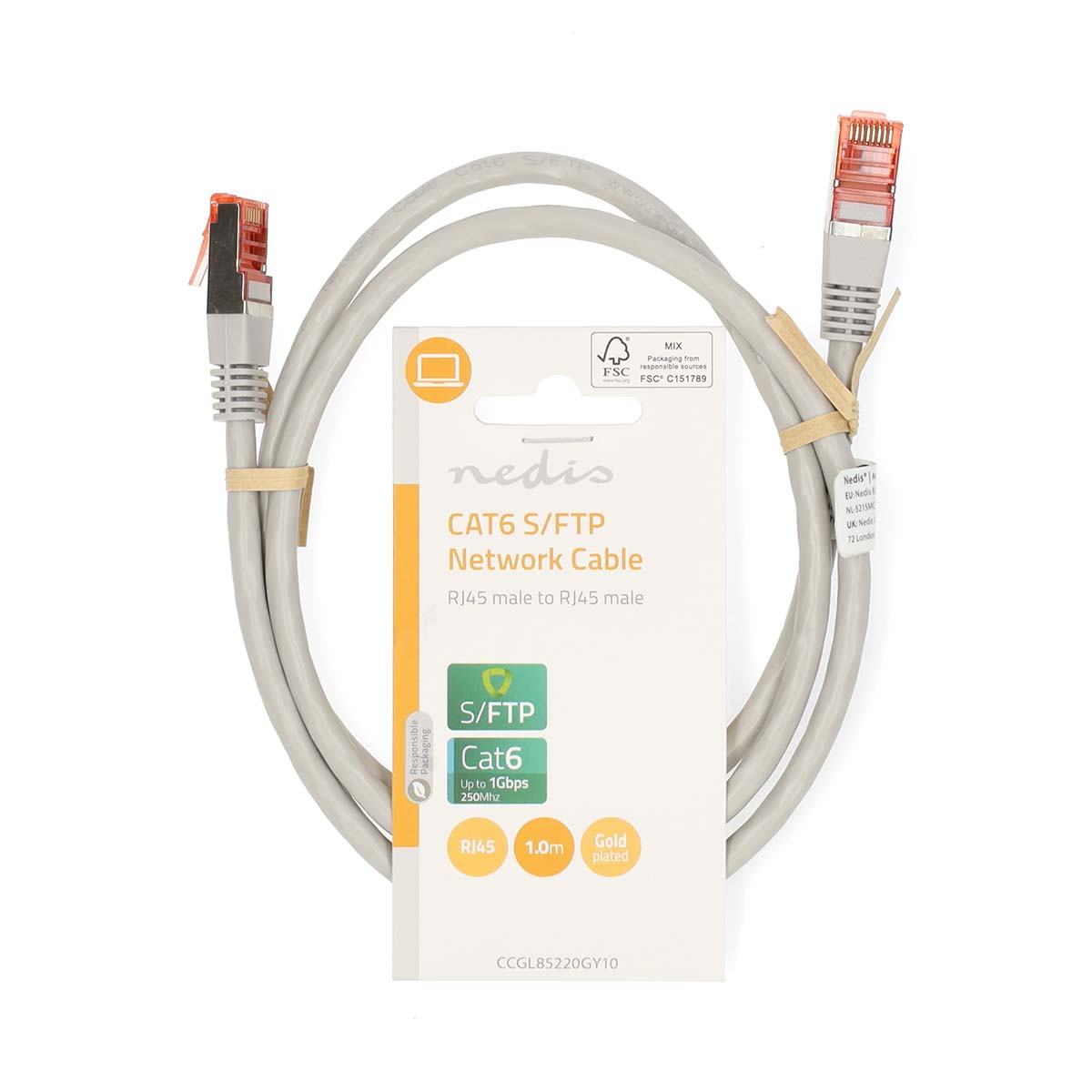

CAT6 Network Cable - 1M
• Connectors: RJ45 (m) - RJ45 (m) with gold plated pins for clear signal
• CAT6 (Gigabit, 10/100/1000 Mbit/s) / 250 MHz
• Shielded and Foided with Unshielded Twisted Pairs
• Straight cable with twisted pairs
This double screened S/FTP CAT6 Gigabit network patch cable can be used to connect a PC, notebook, switch or other device to connect to a modem or router. The cable has snagless plugs ，prevent craking and breakingwith CCA stranded wires which are straight connected.
This cable has both an overall braid shied and foiled shield with unshield twisted pairs,which offers effective protection from EMI.
The CAT6 cable can be used in network solutions up to 1000 Mbit/s (Gigabit network).
Product specifications
| Connector design - side B | Straight |
| Connector design - side A | Straight |
| Cable length | 1.00 m |
| Cable design | Round |
| Cable mantle size | 6.0 mm |
| Material | PVC |
| Connector plating | Gold Plated |
| Cable mantle material | PVC |
| AWG value | 26 |
| Maximum bandwith | 1 Gbps |
| Frequency | 250 MHz |
| Cable type | CAT6 |
| Conductor material | CCA |
| Colour | Grey |
| Shielding | SF/UTP |
| Connector B | RJ45 Male |
| Connector A | RJ45 Male |
| Number of Products in Package | 1 pcs |
