TVM 1243

SKU: 8712285348761
Brand: Vogels
Category: Brackets and Mounts
In Stock
Subcategory: Turn & Tilt Wall Brackets
Retail price
€69.90
TVM 1243 Full-Motion TV Wall Mount

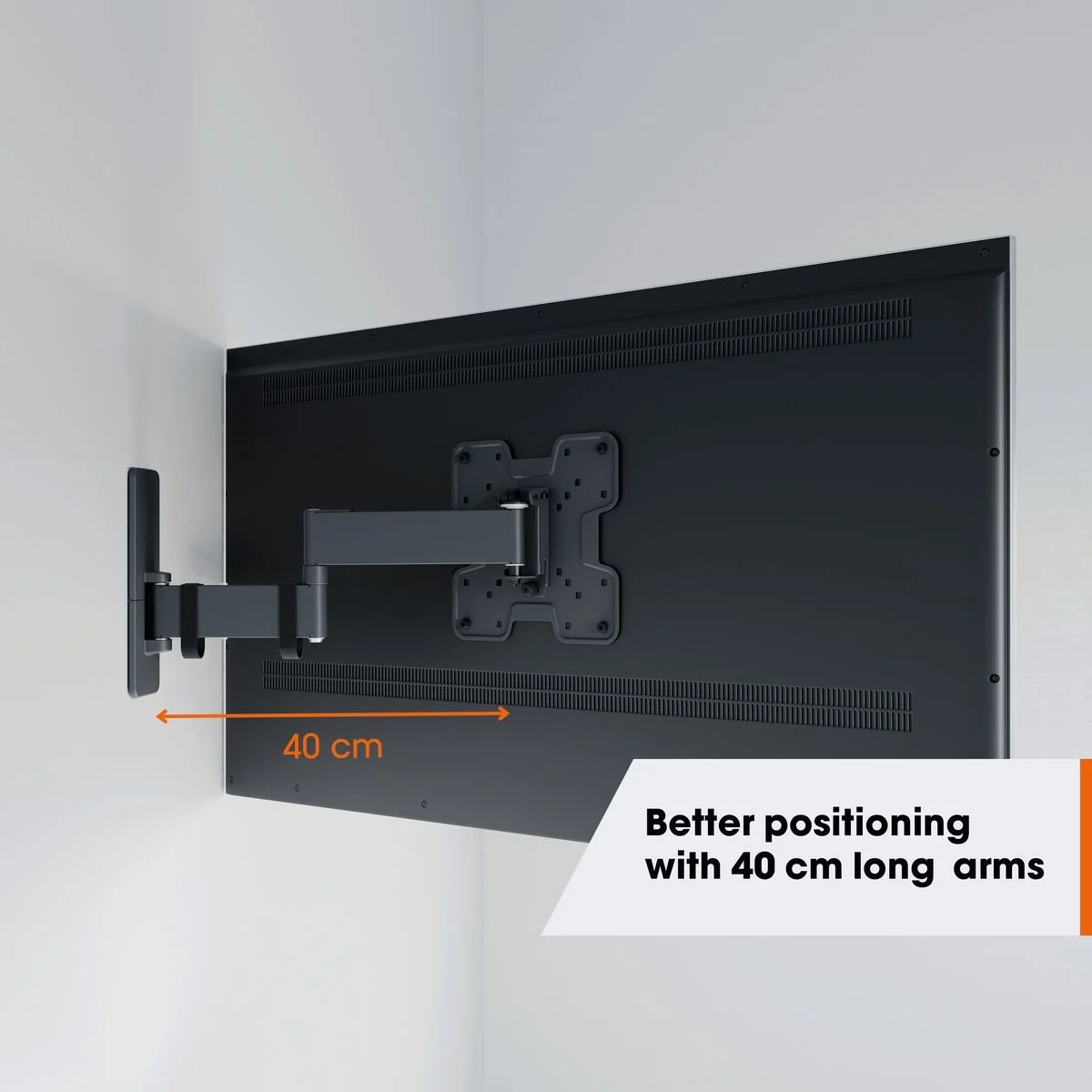

  • Turn your TV up to 180° thanks to long arms of 40 cm
  • Secure tilting up to 15°
  • Easy to level, even after installation
  • Cable straps included

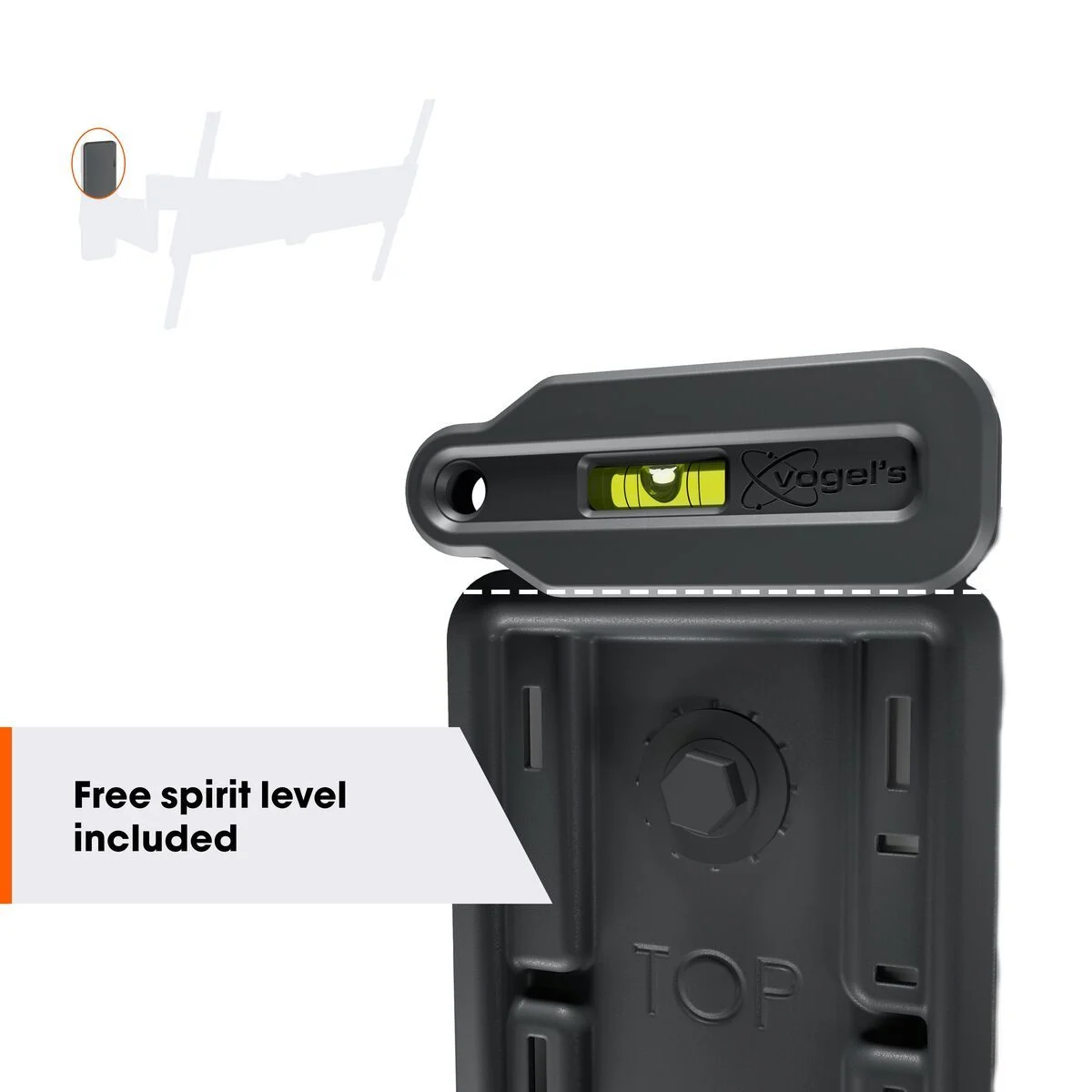

  • Free spirit level included

Extreme full-motion TV wall mount for TVs from 19 to 43 inches
Maximum viewing comfort from any angle in the room. That's what this QUICK Full-Motion+ TV wall mount offers. The wall mount can be turned up to 180°. You can also tilt it up to 15°. Installation is extremely easy. You can mount your TV safely on the wall in less than 30 minutes. The QUICK Full-Motion TV wall mount is suitable for TVs from 19 to 43 inches and weighing up to 15 kg.

Installed in no more than 30 minutes
Installation is very easy thanks to the unique EasyFIX™ system. The entire installation process for the QUICK Full-Motion+ TV wall mount consists of just three steps. You can mount your TV safely on the wall in max. 30 minutes. Is it mounted a bit crooked? That's easy to solve. Even after installation, you can easily adjust the level.

Vogel's makes it easy
Your QUICK Full Motion+ TV wall mount comes with all the mounting materials you need: drilling template, screws and Fischer® DuoPower plugs. A spirit level is also included, as well as cable ties to bind cables together tightly and securely. Our free DrillRight app makes it easy to mark out the first drilling hole, and the Quick Installation Guide shows you how to install everything step by step. You can also view the detailed manual and the installation video online.

With Vogel's, you are choosing safety
You want to mount your valuable TV safely. That's another good reason to choose Vogel's. QUICK Full-Motion+ TV wall mounts are TÜV-certified and tested at three times their maximum weight capacity. As a result, they meet the highest safety requirements. The QUICK Full-Motion+ TV wall mount comes with a 5-year guarantee.

Consciously designed
The environmental impact of this product is 6,7 kg CO₂ equivalent. At Vogel's, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet under Downloads.



Specifications


EAN single box
8712285348761
Product category
Full-Motion TV Wall Mount
Product series
QUICK
Guarantee
5 years
Colour
Black
Min. screen size (inch)
19
Max. screen size (inch)
43
Max. weight load (kg)
15
Maximum rotation
Full motion (up to 180°)
Maximum tilt
Tilt up to 15°

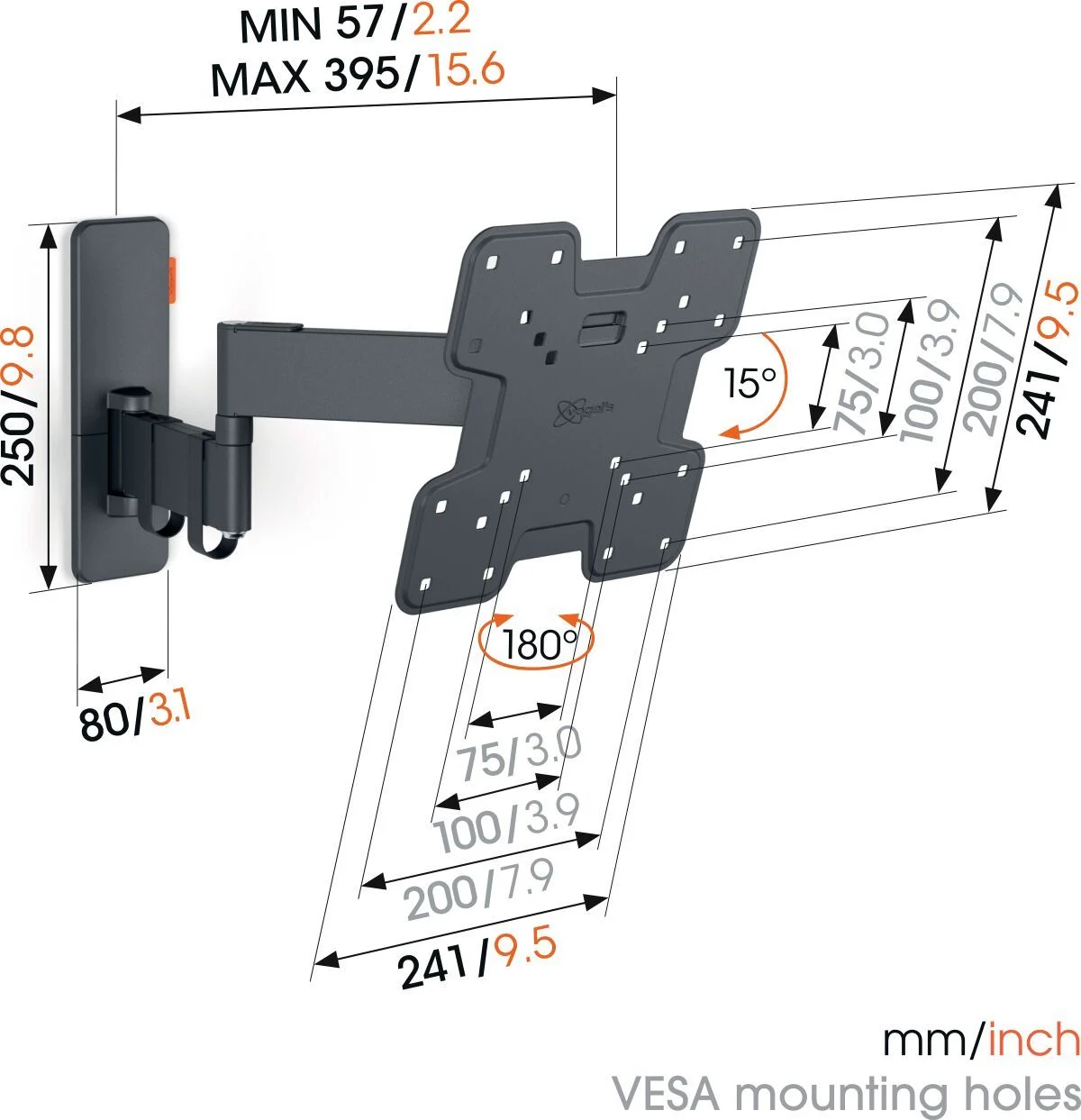

Hole pattern (VESA)
75 mm x 75 mm, 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm
Min. distance to the wall (mm)
57
Max. distance to the wall (mm)
395
Number of pivot points
3

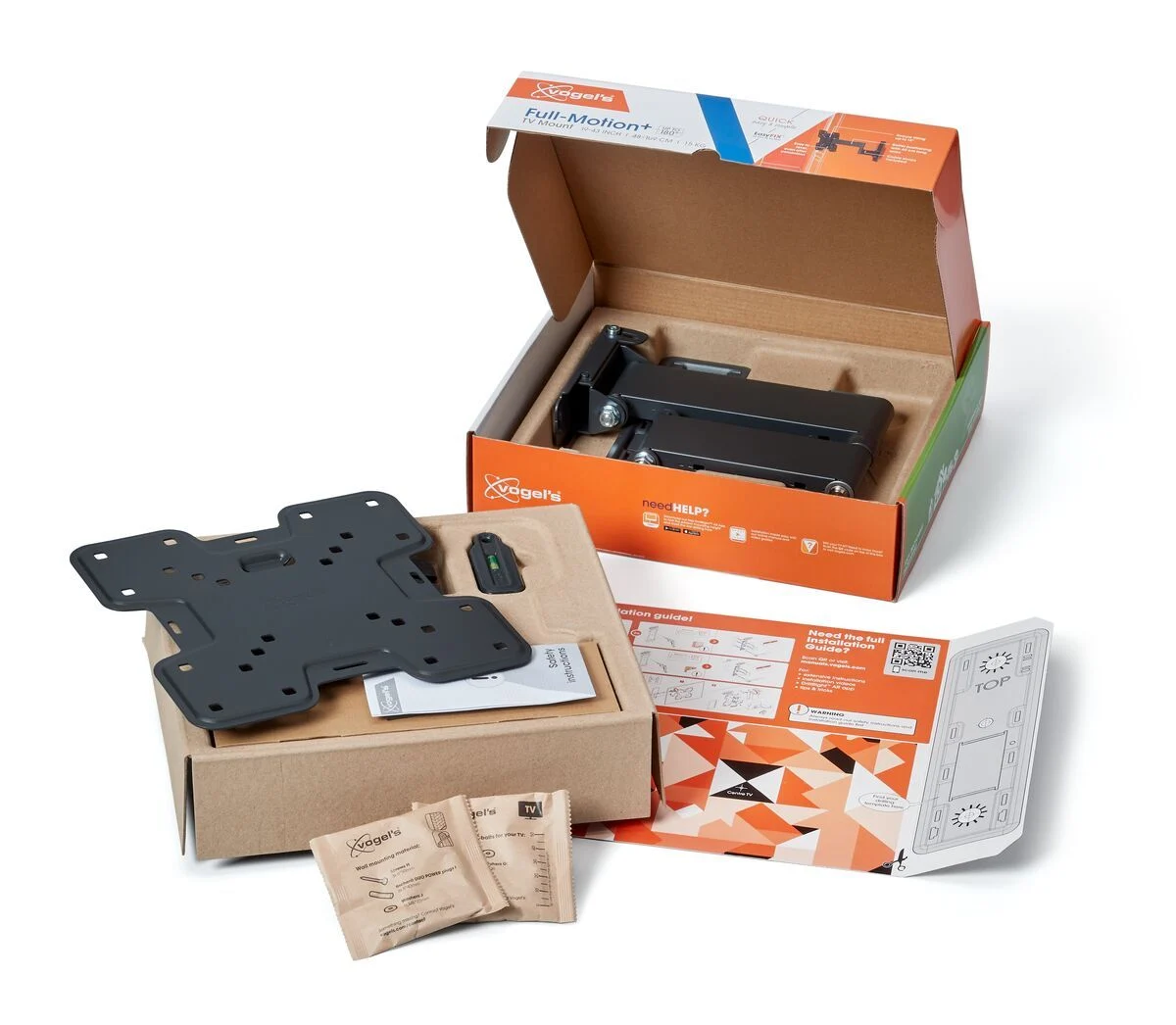

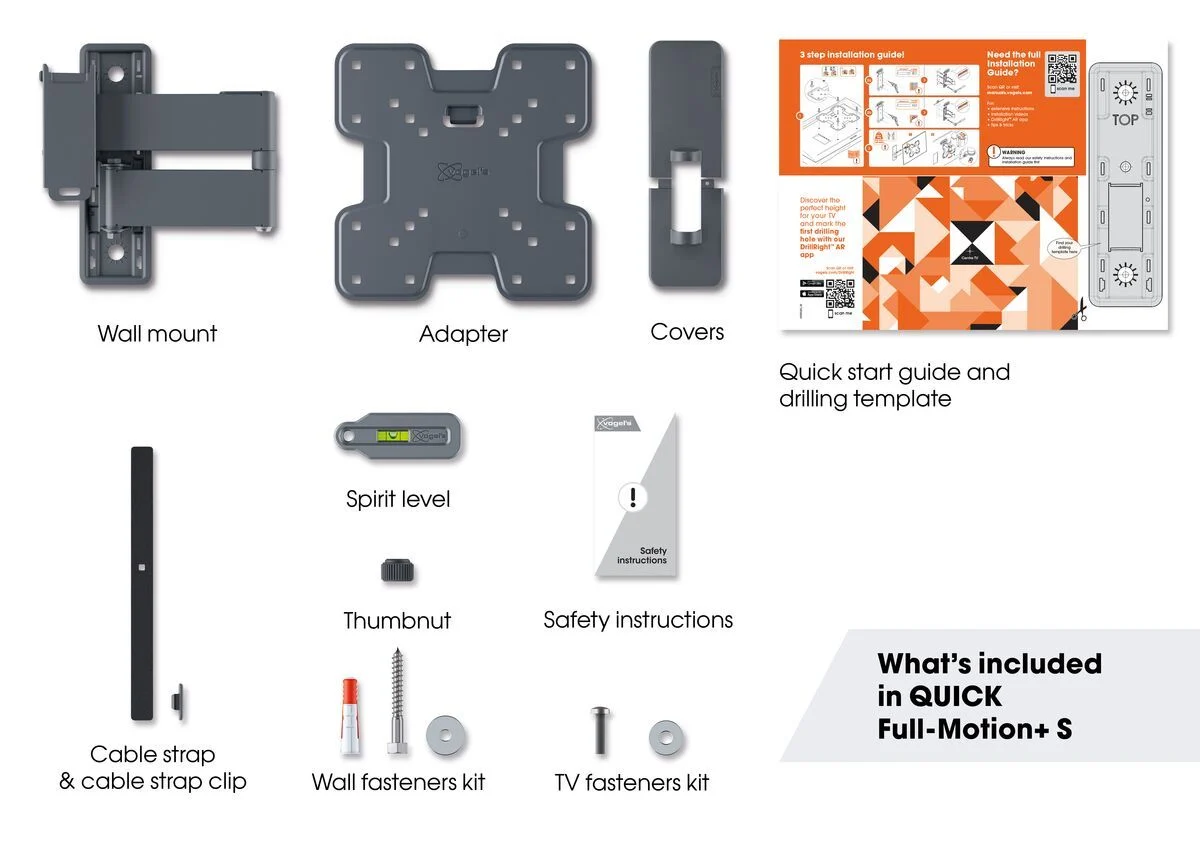

What's in the box
Wall mount, Cable straps, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight app, Drilling template
